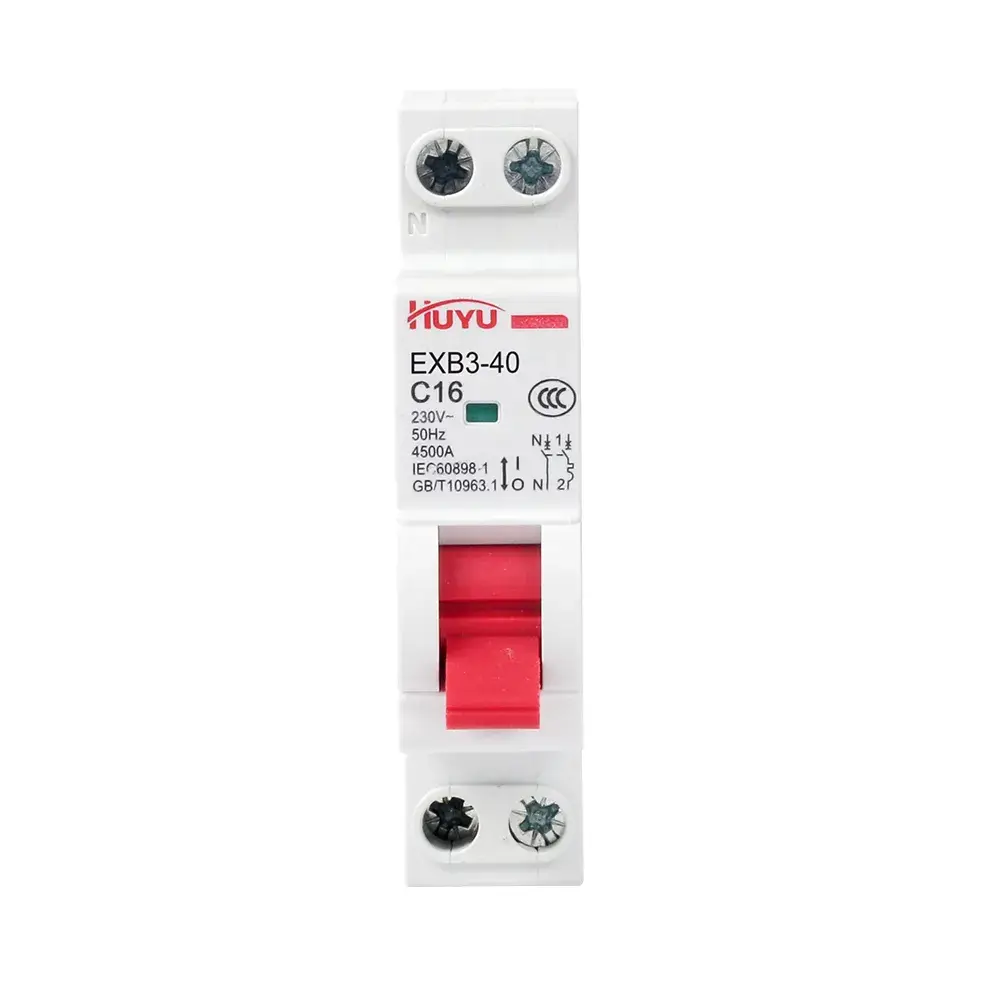

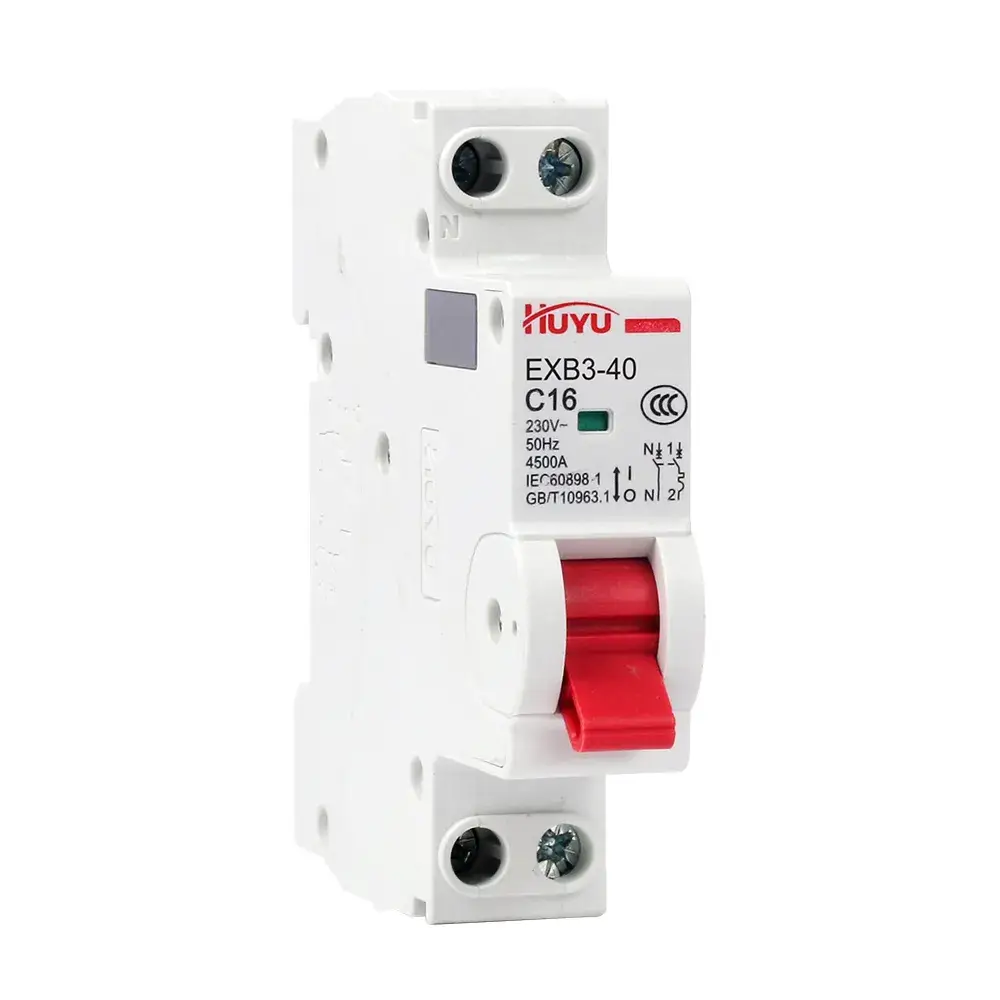

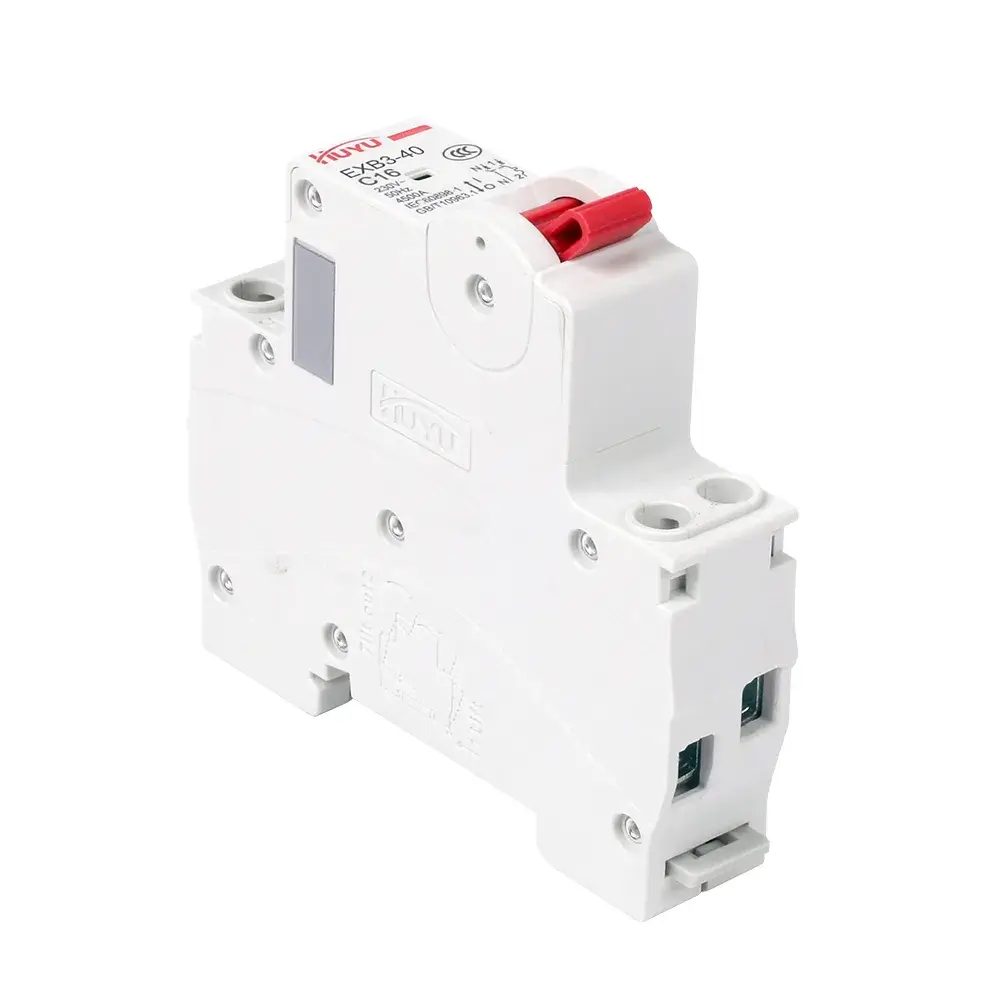

EXB3-40 1P+N 40A AC Mini Circuit Breaker

EXB3-40 1P+N 40A AC Mini Circuit Breaker – Explorer Series Solution for 230V Systems

When dealing with 230V AC distribution systems and aiming for reliable overcurrent protection in a compact size, the EXB3-40 from HUYU Electric is an optimal choice. As part of the Explorer series, this advanced AC Mini Circuit Breaker employs a 1P+N configuration and offers current ratings from 6A to 40A, with a robust 4.5kA Icu/Ics symmetrical breaking capacity that complies with IEC 60898-1 and GB/T 10963.1 standards.

The EXB3-40 ensures consistent and reliable performance by utilizing thermal-magnetic tripping with B (3In–5In), C (5In–10In), and D (10In–20In) curve options. Its wide operating temperature range of -35°C to +70°C makes it suitable for unconditioned environments. Featuring a default IP20 rating, which can be extended to IP40 when installed within a distribution box, the device offers excellent versatility.

Moreover, the EXB3-40 stands out due to its comprehensive accessory system. It supports seven snap-on modules, including auxiliary contact (OF), alarm contact (SD), shunt release (MX+OF), undervoltage release (MN), overvoltage release (MV), combination release (MVMN), and no-voltage release (MNs). Offered at a competitive factory-direct OEM/ODM price, HUYU Electric ensures full documentation, making this breaker an attractive alternative to offerings from Schneider, ABB, Hager, Eaton, Siemens, Legrand, Chint, and Havells.

AC MCB Trip Curves – Tailored to Diverse 230V Load Types

Built for both safety and flexibility, all trip curves share a symmetrical 4,500A Icu/Ics breaking capacity. This feature ensures the Mini Circuit Breaker remains fully operational even after responding to maximum-rated faults. Designed with a wide ampere range, from 6A to 40A, the EXB3-40 effectively prevents nuisance tripping and ensures seamless operation. When a Type B breaker trips prematurely on motor circuits, using a Type C often resolves the problem without compromising overload protection.

7 Accessories – Beyond Essential Circuit Protection

Enhance the functionality of the EXB3-40 circuit breaker with seven available snap-on modules. These modular accessories elevate the MCB from a basic circuit breaker to a multifunctional control center.

• OF Auxiliary Contact: Relays breaker open/close status to a Building Management System (BMS) or indicator light.
• SD Alarm Contact: Alerts operators when the breaker trips, ideal for unmanned rooms.
• MX+OF Shunt Release: Enables remote tripping via PLC, fire alarm systems, or emergency circuits.
• MN Undervoltage Release: Disconnects loads during brownouts to prevent equipment damage.
• MV Overvoltage Release: Protects against sustained high voltage conditions.
• MVMN Combination Release: Offers both undervoltage and overvoltage protection.
• MNs No-Voltage Release: Disconnects power upon supply failure to prevent undesired automatic restarts.

All accessories are quick to install, requiring no tools for attachment. This design allows for seamless upgrades or customizations based on specific installations.

Technical Specifications

Designed for Flexible OEM Integration

Buyer’s Guide

How to Choose the Right EXB3-40 AC Mini Circuit Breaker

A complete guide to selecting the suitable EXB3-40 configuration for your needs.

Choosing the Correct Current Rating

The EXB3-40 series offers diverse current ratings from 6A to 40A, tailored for various applications.

• Lighting circuits use 6A or 10A
• Socket outlets use 16A or 20A
• High-draw appliances like water heaters or air conditioners use 25A or 32A
• Cookers and shower circuits are ideal for 40A breakers

For equipment with high startup currents, select a breaker capacity to handle initial surges while ensuring adequate protection.

Determine the Curve Type

B, C, or D curves cater to different load types:
Type B: For resistive or low-reactive loads (3In–5In) like electric heating or incandescent lighting.
Type C: Standard for residential and commercial applications (5In–10In) with motors, fans, or fluorescent lighting.
Type D: Designed to withstand high inrush potential (10In–20In), e.g., transformers or large motors.

Installation Guide

Install the EXB3-40 on a TH35-7.5 DIN rail, using terminal connections for top or bottom wiring. Each terminal accommodates up to 10mm² conductors with a maximum torque of 1.5 N·m. Accessories click into place effortlessly, enabling easy field installations or upgrades when required.

Frequently Asked Questions

What is AC MCB?

An AC MCB is a miniature circuit breaker designed specifically for alternating current circuits. The “AC” designation means the device’s arc-extinguishing mechanism relies on the natural zero-crossing point of the AC waveform — the current passes through zero amps 100 or 120 times per second (at 50 or 60Hz), and the breaker uses this momentary zero to quench the arc when the contacts open. The EXB3-40 is an AC MCB rated for 230V, 50/60Hz circuits up to 40A.

Can I use AC without MCB?

Technically, an AC circuit can operate without an MCB — but it would have no overcurrent or short-circuit protection. Without an MCB, a fault or overload could overheat the wiring and cause a fire before the upstream protection (if any) responds. Electrical codes such as IEC 60364 and national wiring regulations mandate overcurrent protection on all final circuits. An MCB is the standard device that provides this protection in a compact, resettable format.

What is the difference between DC MCB and AC MCB?

The fundamental difference is in arc extinction. An AC MCB extinguishes the arc at the current zero-crossing point of the AC waveform. A DC MCB must force the arc to extinguish because DC current flows continuously in one direction without a zero-crossing — it uses stronger magnetic blowout coils and larger arc chutes. Physically, DC MCBs often have a “+” and “-” marking indicating the correct polarity for connection, while AC MCBs have interchangeable line and load terminals. The EXB3-40 is an AC MCB; using it on a DC circuit would result in failure to extinguish the arc, potentially destroying the breaker and creating a fire hazard.

How to know MCB is AC or DC?

There are several ways to identify whether an MCB is AC or DC rated. Check the markings on the device body: an AC MCB will show a sine wave symbol (~) or the letters “AC” alongside the voltage rating, while a DC MCB will show a solid line over a dashed line (⎓) or “DC”. The EXB3-40 is clearly marked with its AC voltage rating and frequency on the body. The manufacturer’s datasheet will also specify the current type. When in doubt, never assume — using the wrong current type can be dangerous.
