The maintenance electrician at a commercial building had to replace a malfunctioning 20-amp breaker. After removing the old breaker, he discovered that it was a Siemens brand breaker. However, he was carrying an Eaton brand breaker that is the same amperage and appeared to be compatible with the Siemens panel. The concern was whether or not the Eaton breaker could be installed in the Siemens panel. The electrician’s hesitation was backed by a compatibility list of breakers to panels. The installation of a breaker, which may fit and physically attach to the bus bar of the Siemens panel, will create an inappropriate, high-resistance connection which will void the UL listing of the panel and could lead to a fire hazard. Therefore, it is essential for electricians to know which breakers are acceptable for use in Siemens panels and which are not before proceeding with the installation or work on electrical systems.

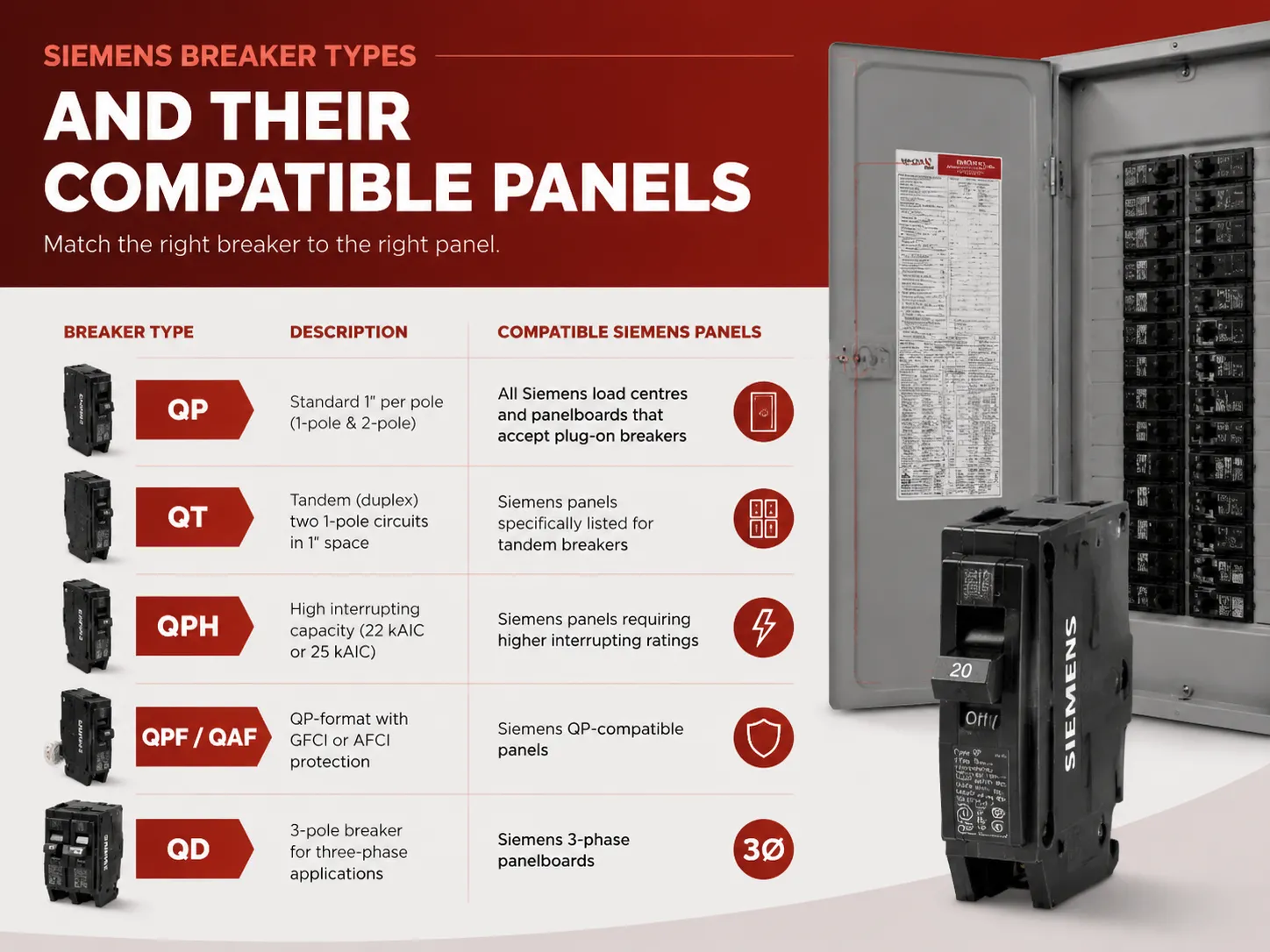

Siemens Breaker Types and Their Compatible Panels
Siemens produces two primary types of residential and light commercial circuit breakers in North America – QP Circuit Breakers and QT Circuit Breakers. Both types have the same design for plug-on connections; however, they are not completely interchangeable from panel to panel and slot to slot within the same manufacturer’s panel. The chart below summarizes which circuit breakers can go in which slots and what type of panel and or slot they can use.
| Siemens Breaker Type | Description | Compatible Siemens Panels | Notes |
|---|---|---|---|
| Type QP (1‑pole and 2‑pole) | Standard full‑size breaker, 1 inch per pole | All Siemens load centres and panelboards that accept plug‑on breakers | This is the default breaker for Siemens residential panels. Also fits Murray panels (Siemens‑owned brand) and some older ITE panels. |
| Type QT (tandem/duplex) | Tandem breaker, two independent 1‑pole circuits in a 1‑inch body | Siemens panels specifically listed for tandem breakers; not all slots accept tandems | Check the panel label for tandem‑compatible slots. Installing a tandem in a non‑listed slot can overload the bus stab. |
| Type QPH (1‑pole and 2‑pole) | High‑interrupting‑capacity version of QP, 22 kAIC or 25 kAIC | Siemens panels requiring higher interrupting ratings | Used where the available fault current exceeds the standard 10 kAIC rating. The panel label specifies the required interrupting capacity. |
| Type QPF (GFCI) and Type QAF (AFCI) | QP‑format breakers with integrated ground‑fault or arc‑fault protection | Siemens QP‑compatible panels | These are full‑size breakers that occupy one or two standard slots. They are the easiest way to add GFCI or AFCI protection to an existing Siemens panel. |
| Type QD (3‑pole) | 3‑pole breaker for three‑phase applications | Siemens 3‑phase panelboards | Used in commercial and light industrial three‑phase panels. Not for residential single‑phase panels. |
The panel label — the sticker inside the door or on the side wall — is the definitive authority. It lists every breaker type that has been tested and listed for that specific panel. Siemens itself provides a compatibility search tool on its website, and electrical distributors such as Home Depot offer compatibility checkers that cross‑reference breaker types with panel models. No online chart replaces the panel label.

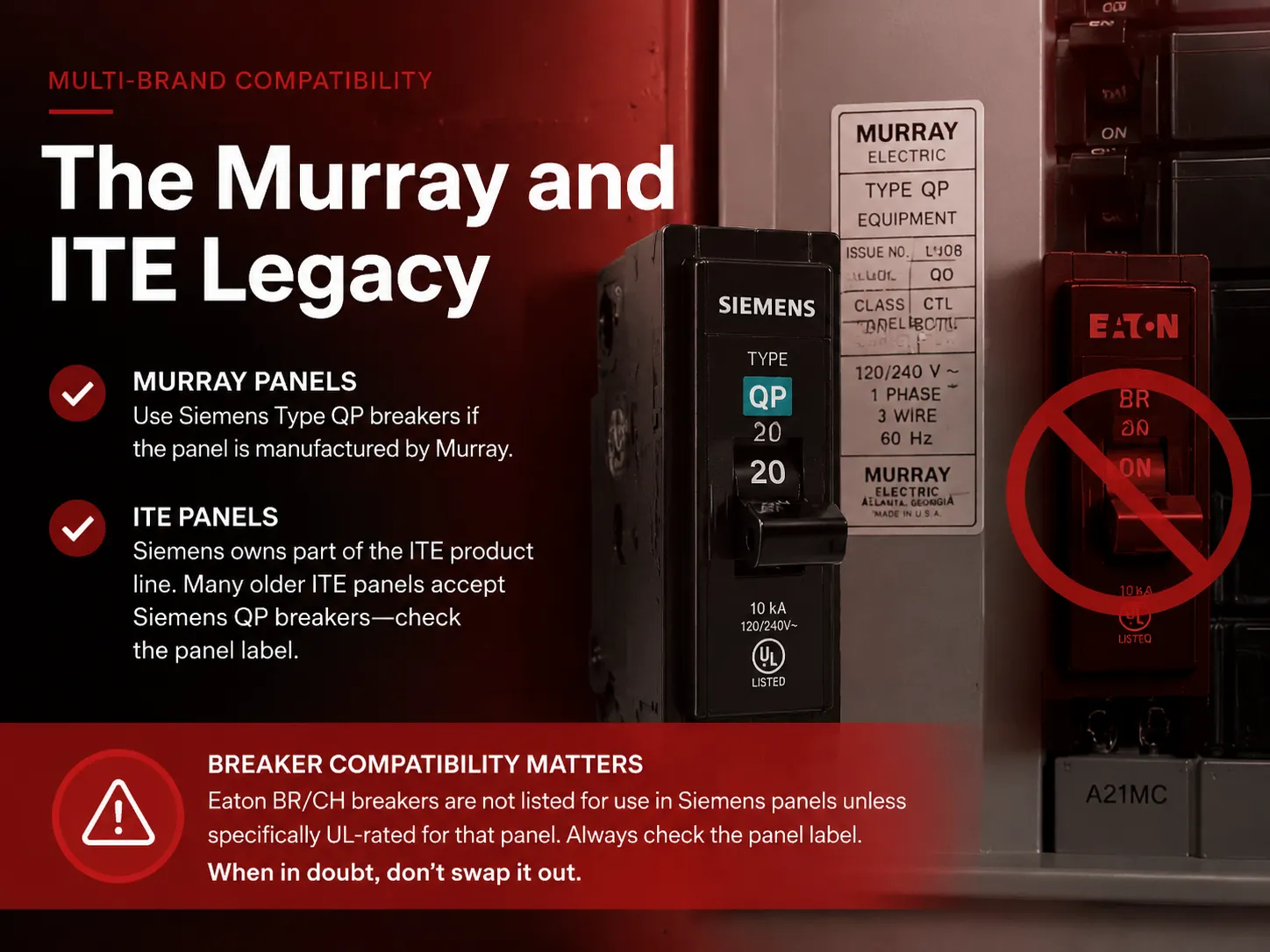

Multi‑Brand Compatibility: The Murray and ITE Legacy
There are some clear answers and some very complicated questions related to compatibility because of the Siemens’ acquisition history. To clarify some of these points: Siemens owns the Murray brand and it would be appropriate to use a Siemens Type QP breaker in a murray panel if it was listed on the panel door as being manufactured by Murray. There is also the fact that Siemens acquired a portion of the ITE (Inverse Time Element) product line and many of the older ITE panels accept SIemens QP breakers, but not all of them do. The only reliable source of information for an older ITE Panel is its label.
The definitive answer to the question “Can Eaton circuit breakers be used in a Siemens panel?” is “No,” unless the Eaton Circuit Breaker is specifically UL-rated for use in that Siemens panel. The normal Eaton BR or CH circuit breaker is only listed for use in either Eaton-branded or Cutler-Hammer panels. Installing either of these circuit breakers in a Siemens panel is a violation of the code and poses a serious safety hazard due to possible fires. This rule is true for all kinds of major brands; ie, Square D circuit breakers are listed for use in Square D panels, Siemens circuit breakers for use in Siemens panels and so forth, with one narrow exception, UL-rated circuit breakers that are marked for competitive usage. For more detail on the certification framework that governs this, our article on what UL 489 breakers are explains the testing that a breaker must pass before it is listed for a panel. And for help matching a breaker’s rating to the specific circuit, our guide on what size circuit breaker you need covers the NEC‑based sizing process.
How to Check Breaker Compatibility Safely
Checking whether a circuit breaker is compatible with a panel is methodical, not a guess:
- Read the panel label. Contains a list of breaker types, their voltage rating, interrupting capacity, & which slots take tandems. Take a photo of this label for a permanent reference on your phone.
- Match the breaker type to the label. Only use Siemens Type QP breakers when the panel calls for that breaker type (also using only Siemens GFCI/AFCI you can substitute only if the panel states so). You cannot use the QT breaker, BR circuit breakers, or Homeline circuit breakers or any other brand besides Siemens when using Type QP circuit breakers.
- Match the interrupting capacity. Although 10 kAIC breakers can be installed in the same type of panel as a 22 kAIC breaker and have the same size and amp rating, you cannot install a 10 kAIC breaker in a panel rated at 22 kAIC.
- Verify the physical condition of the bus bar. Bus stabs that have been corroded or mechanically damaged will not provide a safe means of connection to any breaker, regardless of their compatibility. If you notice signs of arcing, pitting, or corrosion on a bus bar, it may indicate that the panel must be replaced.
Are Siemens QP and QT Interchangeable?
A Siemens QP breaker is considered an actual full-size 1″ breaker per pole. A QT is designed to be a tandem breaker with two independent single pole circuits mounted in a single inch of space, and requires that you use designated tandem breaker slots in order to install them properly. A QP can be installed in any available slot, while a QT must only be installed in a slot that the label of the circuit breaker panel is marked with “tandem”. If you’re trying to use a QT in a regular slot, there is a possibility that you could damage the bus bar due to either overloading the overload bus connection or not properly seating the breaker within the bus connection. This is one of the leading causes of bus bar damage in residential circuit breaker panels.
Frequently Asked Questions
What are Siemens breakers compatible with?
Siemens Type QP breakers Siemens load centres & panelboards, Murray panelboards (owned by Siemens), and several obsolete ITE panelboards can be used together in harmony. The only panels that cannot be unanimously combined are those manufactured by Square D, Eaton, or GE unless otherwise stated by the breaker’s UL classification as well as markings that clarify its permissibility for use with other manufacturers’ panelboards.
How to check breaker compatibility?
Look at the panel label on the inside of the door where it provides details regarding approved circuit protection devices and the required interrupting capacity; it also shows the circuit breaker slots that can accept a Tandem breaker and then verify that the type of circuit breaker you are installing corresponds to what is listed as acceptable on the label. The panel label is the final word in regard to the correctness of your installation.
Can I use Eaton breakers in a Siemens panel?
Standard Eaton BR or CH breakers cannot be installed on Siemens panels because they are not listed or approved for use in this application unless the specific breaker is UL classified for that Siemens panel type. If you install an unlisted type of breaker, you are voiding the safety certification of the entire panel.
Are Siemens QP and QT interchangeable?
No. A Type QP is a full size circuit breaker which can be installed in any position in a compatible panel. A Type QT is a tandem circuit breaker which may be installed only in those slots of the panel that are specifically identified on the panel label as being compatible with tandem breakers; therefore a QT cannot be installed in a non-tandem slot.
References
- Siemens — Residential Circuit Breakers and Load Centres — Official manufacturer information on breaker types, compatibility, and panel specifications.
- Eaton — Circuit Breaker Compatibility — Manufacturer guidance on breaker listing and the importance of using listed, compatible breakers.
- Home Depot — Breaker Compatibility Checker — Retailer tool and guidance for matching breakers to panel types.
- Family Handyman — How to Choose the Right Circuit Breaker — Practical homeowner guidance on breaker types, compatibility, and safe replacement.
A Siemens circuit breaker compatibility chart is a useful quick reference, but the panel label is the only document that carries the force of the UL listing. Siemens panels accept Siemens breakers — Type QP for standard applications, Type QT for tandem slots — and the breaker type must match the label, the interrupting rating, and the physical condition of the bus bar. Multi‑brand mixing is not safe unless a breaker is explicitly UL‑classified for that specific panel. Respecting those rules keeps the panel operating safely, the listing intact, and the building protected. HUYU supplies circuit breakers that meet the certification requirements of the panels they are specified for, because the right breaker in the right panel is the simplest and most fundamental protection decision in any installation.
