EXT1B-63 ATS Switch 6A to 63A,2P/4P

EXT1B-63 ATS Switch – Automatic Power Transition for 6A–63A Applications

The EXT1B-63 series ATS switch provides seamless transition of power with a rating of 6A to 63A AC in 50/60Hz systems operating between 110V and 400V. It is suitable for backup power systems in homes and light commercial setups. Available in 2-pole and 4-pole configurations, it switches to a standby source during overvoltage or undervoltage occurrences in the primary source.

Unlike conventional relay-based ATS, the EXT1B-63 features a PC-class rating, ensuring safe switching under load without short circuits. Operators can choose between automatic and manual modes, offering operational flexibility. For customers seeking reliable automatic transfer switches in this range, HUYU Electric provides factory-direct OEM/ODM solutions with full documentation and support.

Product Specifications

Protection Logic & Control

The EXT1B-63 integrates sophisticated voltage protection, automatically switching from the primary source upon detection of overvoltage or undervoltage. For 220V/50Hz applications, undervoltage trip occurs at 175V with recovery at 195V, while overvoltage triggers at 260V with recovery at 240V.

The PC-class rating ensures the switch operates safely under load without generating short-circuit current. With a control circuit tolerance from 85%-110% Us, the EXT1B-63 delivers reliable switching, even during grid fluctuations. Designed for home and light commercial uses, the EXT1B-63 offers a complete, self-contained solution that eliminates the need for external voltage monitoring relays.

Technical Specifications

OEM/ODM Supply – Compact PC Class ATS for 63A and Below

Buyer’s Guide

How to Choose the Right ATS Switch for Small Backup Systems

Essential criteria for selecting the EXT1B-63 for residential, portable, and light commercial applications.

1. Proper Sizing: The Case for Small ATS Solutions

Many ATS ranges cater to larger installations, requiring small systems to over-provision. The EXT1B-63 covers 6A–63A with eight distinct ratings, perfectly matching smaller system requirements, such as 32A or 63A units for key household needs like lighting, refrigeration, and communications.

2. Voltage and Frequency Range

With support for 110V to 400V at 50/60Hz, the EXT1B-63 caters to diverse regional standards with consistent overvoltage and undervoltage protection. It’s versatile for varied applications across different grid systems.

3. PC Class Protection for Smaller Loads

In smaller installations, the EXT1B-63 ensures safety with its PC class designation, allowing live-load switching without causing short circuits. Paired with an RT16-00-63A fuse, it offers robust protection for branch circuits.

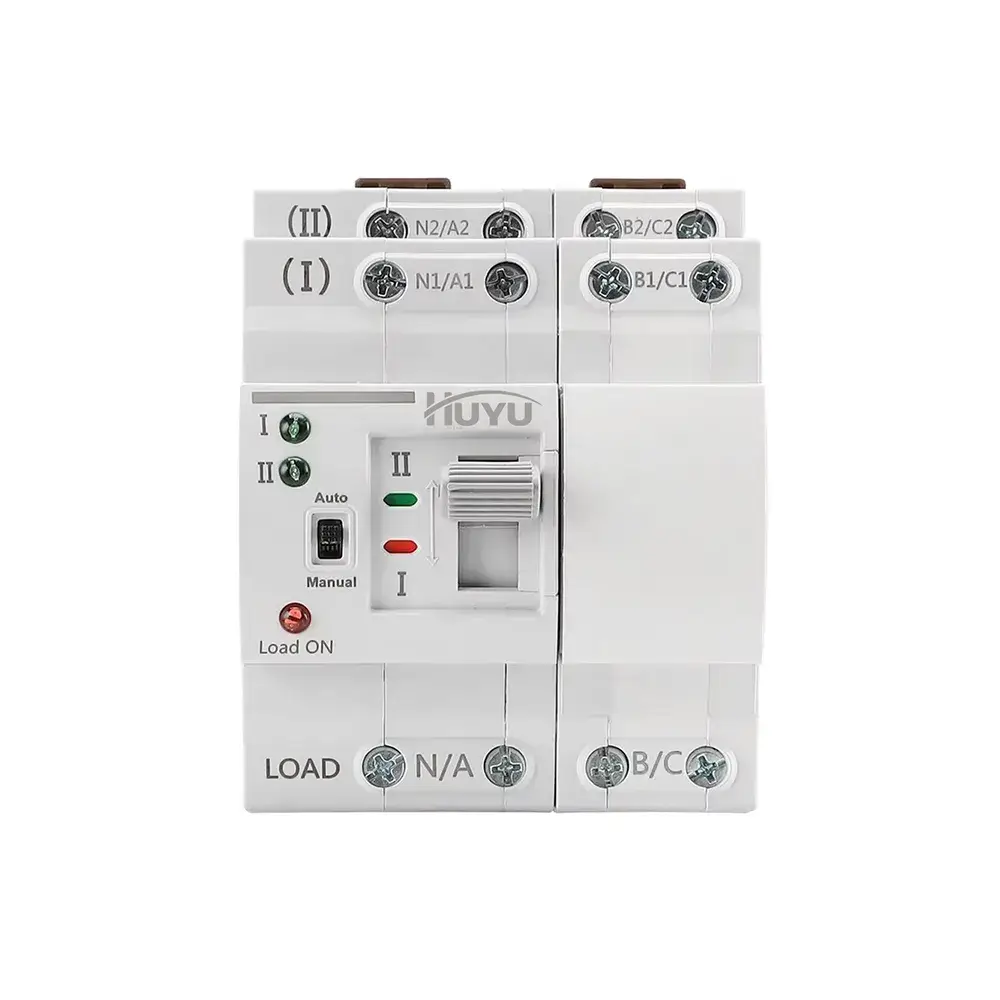

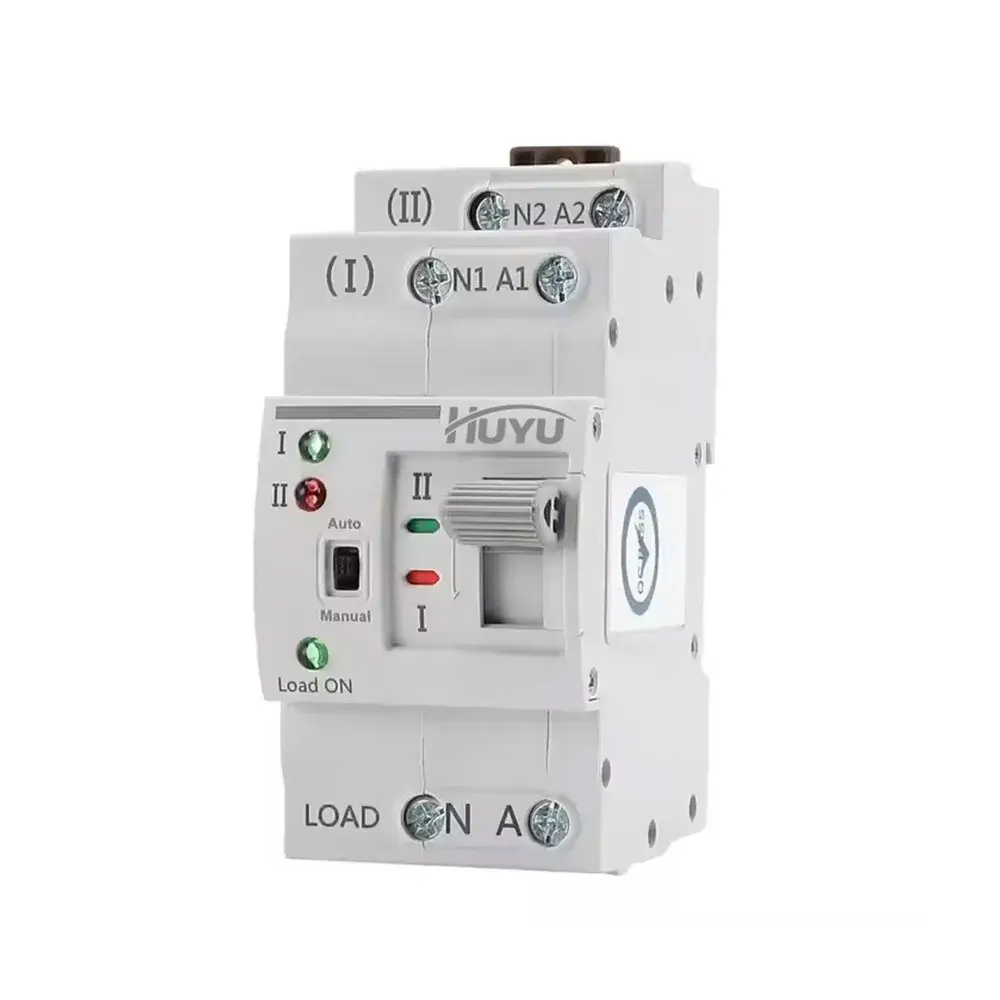

4. 2P vs. 4P Configurations

Opt for 2P for single-phase 220V supplies, while 4P enables neutral switching alongside phases. Both share identical thresholds and mechanical properties, enabling flexibility based on application needs.

Frequently Asked Questions

What are the common problems with ATS panels?

Frequent issues with ATS panels include contact welding under short circuits, nuisance transfers from incorrect voltage thresholds, and installation errors from wiring separate components. The EXT1B-63 addresses these with its PC class rating — the switch can be closed onto a live load without generating short-circuit current. The clearly defined overvoltage/undervoltage thresholds (e.g., 175V dropout / 195V recovery on 220V systems) prevent nuisance switching. Its compact integrated design reduces installation complexity compared to multi-component setups.

How much does GenerLink cost?

GenerLink is a meter-collar device with pricing that depends on utility approval and local installation requirements. As a panel-mount alternative, the EXT1B-63 ATS switch provides an integrated automatic transfer solution for the 6A–63A range. For residential backup and portable generator transfer switch applications, panel-mount ATS switches typically offer a lower total installed cost than meter-collar devices when installed as part of a new or upgraded distribution panel. For project-specific pricing, contact HUYU Electric with your current rating and quantity.

What’s the difference between ATS and STS?

An ATS uses electromechanical contacts to transfer loads between sources, with transfer times measured in hundreds of milliseconds. An STS (Static Transfer Switch) uses semiconductors to complete the transfer in under 5ms. The EXT1B-63 is an electrical transfer switch of the ATS type — its electromechanical design provides galvanic isolation between sources and greater robustness against voltage surges, making it well-suited for residential and light commercial backup where sub-5ms transfer speed is not required.

Is there a DC automatic transfer switch?

Yes, DC automatic transfer switches exist for telecom, solar battery, and DC microgrid applications. The EXT1B-63 is designed for AC systems from 110V to 400V at 50/60Hz. Its AC-31B use category and AC control supply reflect this AC-specific design. For buyers searching for a 63 amp automatic transfer switch in AC distribution, the EXT1B-63 provides the right combination of current rating, voltage flexibility, and PC class safety. For DC transfer switch requirements, a different product family is needed — contact HUYU Electric to discuss options.
