EXEB1H PV Combiner Box Enclosure – IP65 Waterproof for Solar Projects
The base and cover are made of high-quality new PC material; the transparent front cover is also made of new PC material. These components feature excellent toughness, high strength, good impact resistance, and long service life.
-Suitable for indoor and outdoor environments, with waterproof, dustproof, and corrosion-resistant performance.
-Standards complied: GB/T 17466.1, GB/T 17466.24, IEC 60529 IP65
-Patent Numbers:202221500007.6, 202230
Product Information
Product Advantages Description
IP65 Protection Design
Sealed design, screws inside
for better waterproofing
Latch Structure
Stronger locking
structure
Label Position Reserved
Reserved space for control
function labels
Lock Slot Design
Supports anti-theft
lock installation
Circuit Partition Design
Removable left/right baffles
for easy wiring
Captive Screws
Screws stay in place when
loosened
Flexible Knockout Openings
Free to open cable
entry holes
Copper Terminal Assembly
Passed 960°C glow
wire test
EXCB1S Series Surface Mounted Waterproof Distribution Box Product Data Summary Table
| Model | Number of Circuits | Rows | Dimensions(mm) <br>(H×W×D) |
Zero and Ground Row Configuration | Mounting Method |

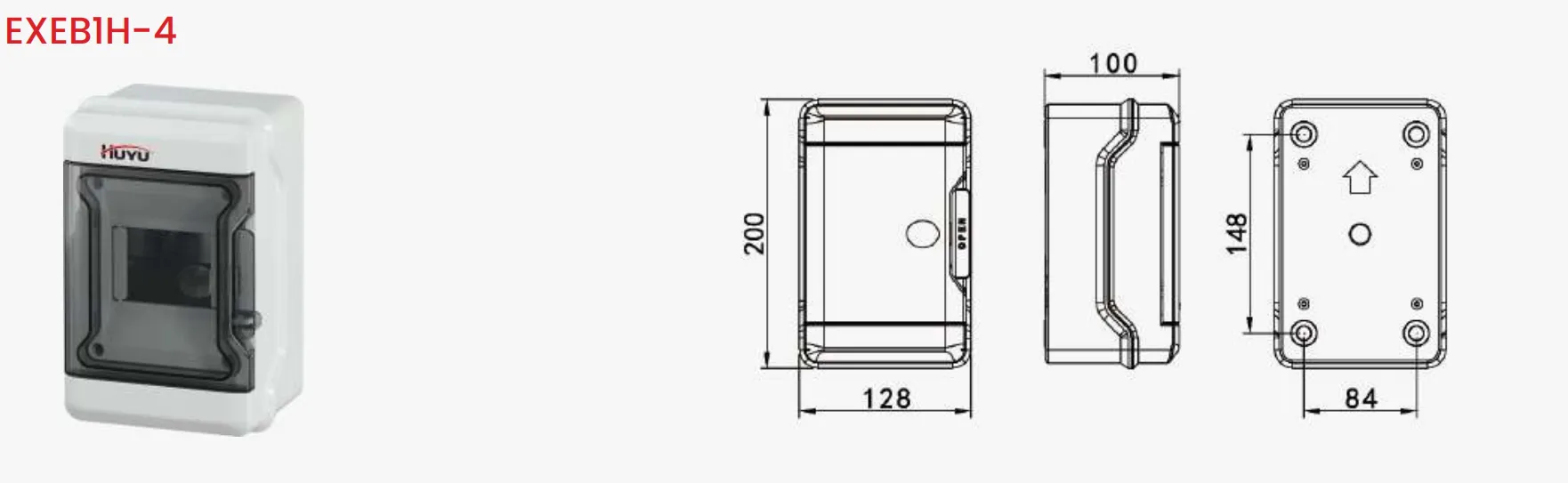

| EXEB1H-4 | 4 Circuits | 1 | 128*200*100 | Zero row:3 holes Ground row:3 holes |
Surface/Wall-mounted |

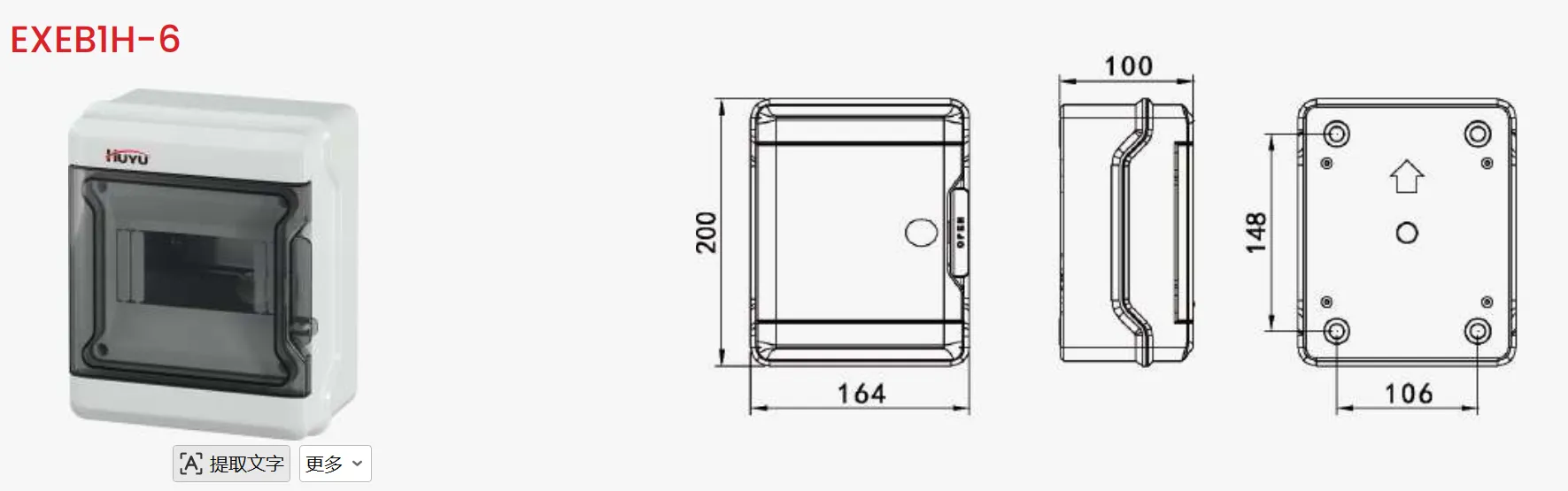

| EXEB1H-6 | 6 Circuits | 1 | 164*200*100 | Zero row:5 holes Ground row:5 holes |
Surface /Wall-mounted |

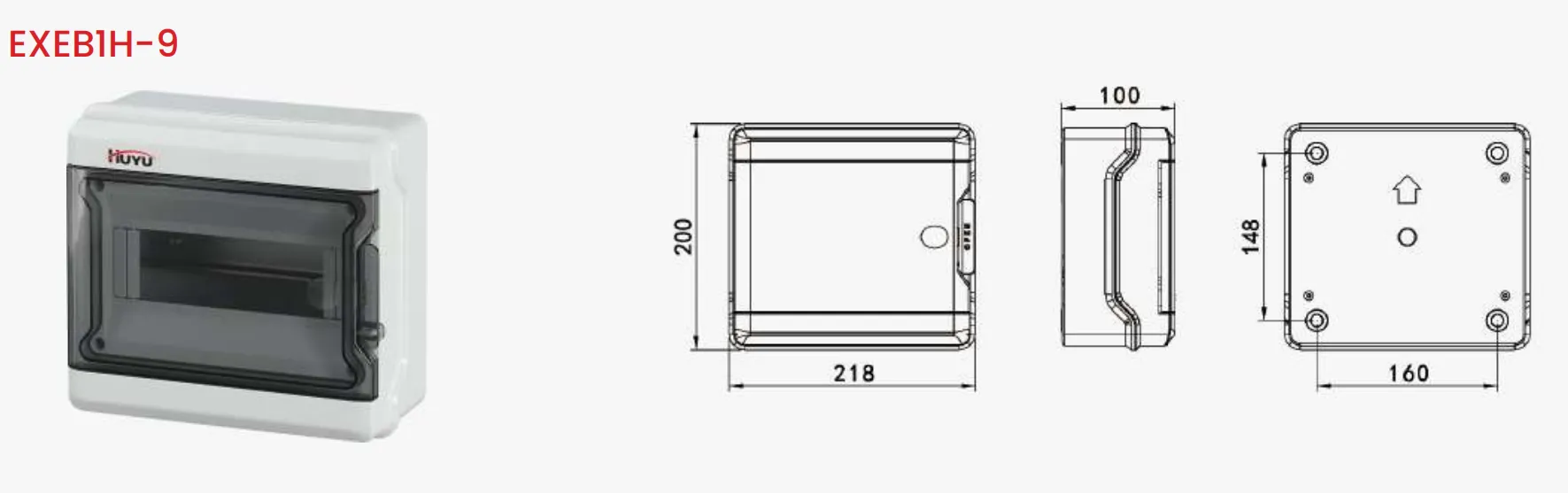

| EXEB¹H-9 | 9 Circuits | 1 | 218*200*100 | Zero row:5 holes Ground row:5 holes |
Surface/Wall-mounted |

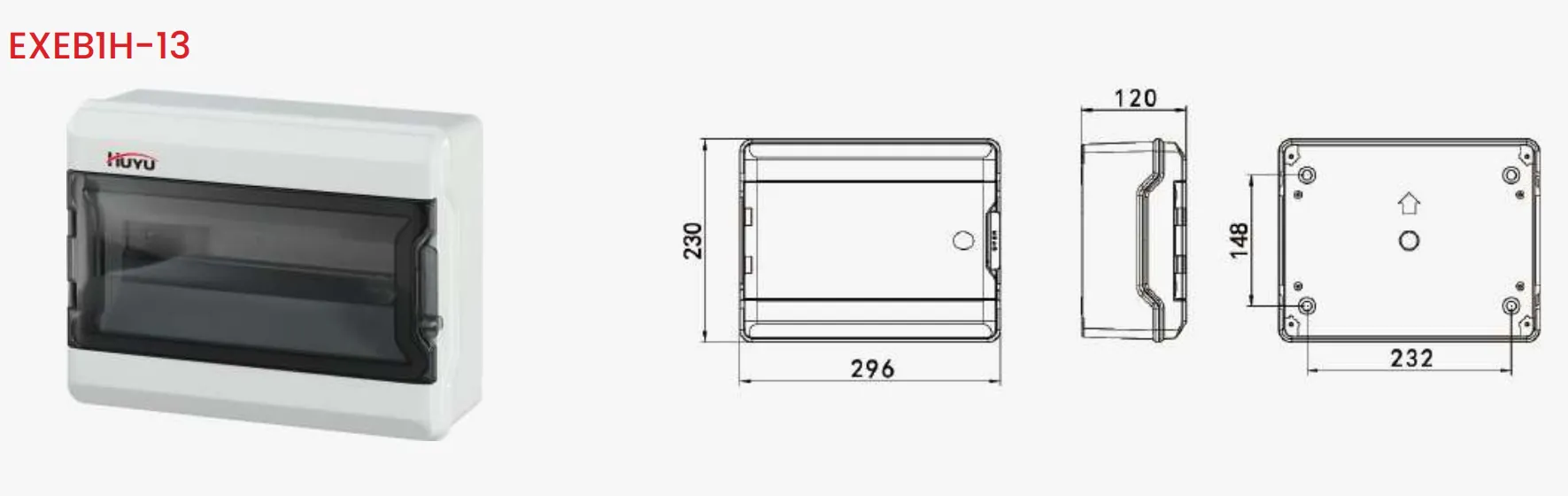

| EXEBIH-13 | 13 Circuits | 1 | 296*230*120 | Zero row:8 holes Ground row:8 holes |
Surface /Wall-mounted |

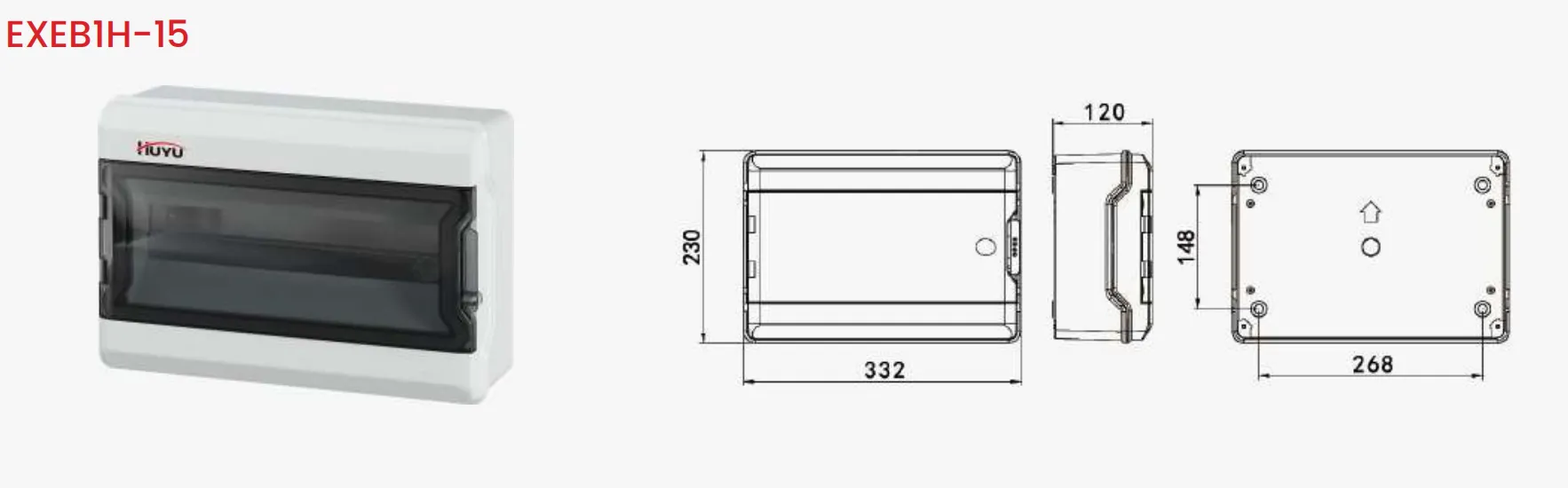

| EXEBIH-15 | 15 Circuits | 1 | 332*230*120 | Zero row:8 holes Ground row:8 holes |
Surface /Wall-mounted |

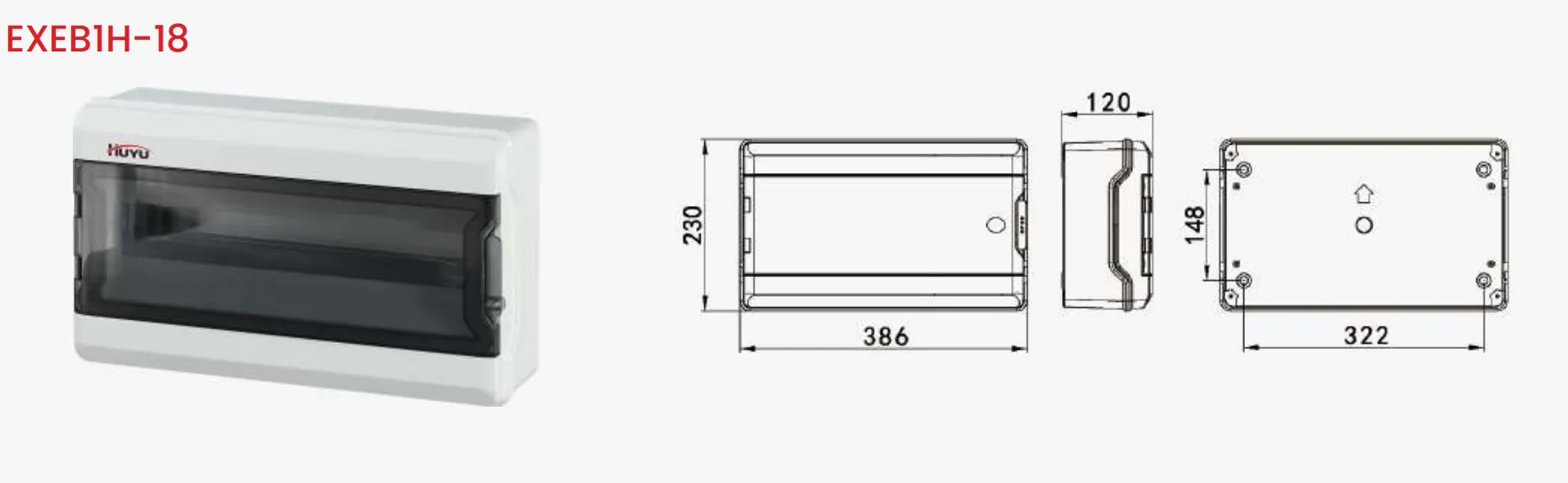

| EXEBIH-18 | 18 Circuits | 1 | 386*230*120 | Zero row:8 holes Ground row:8 holes |
Surface/Wall-mounted |

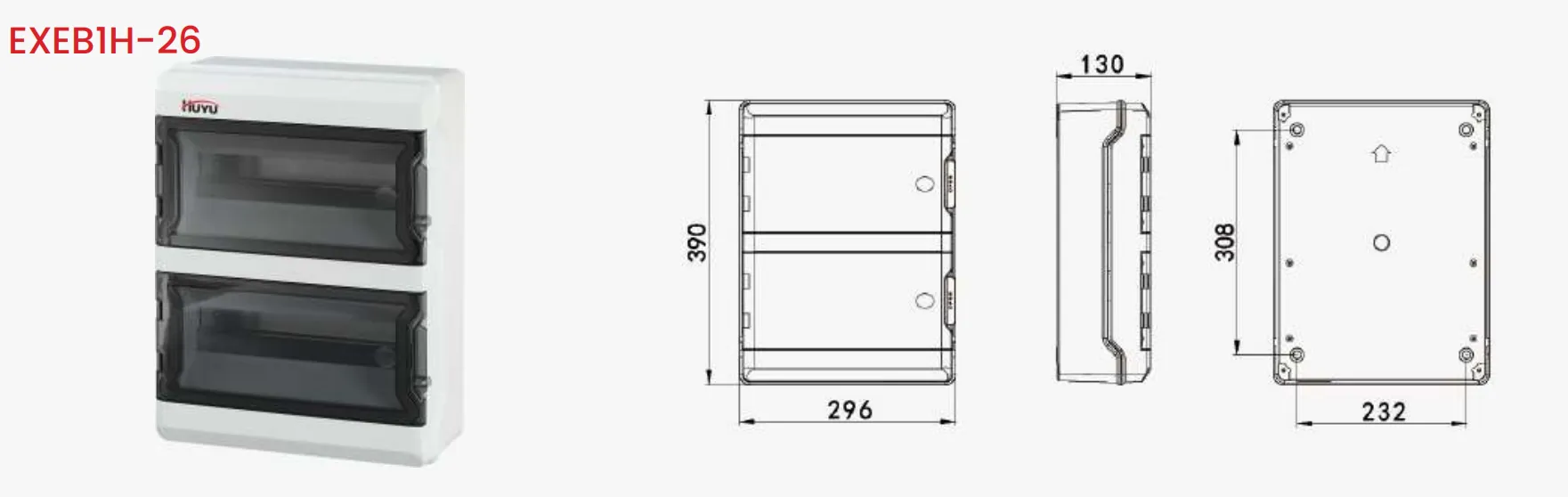

| EXEBIH-26 | 26 Circuits | 2 | 296*390*130 | Zero row:two 8 holes Ground row:two 8 holes |
Surface /Wall-mounted |

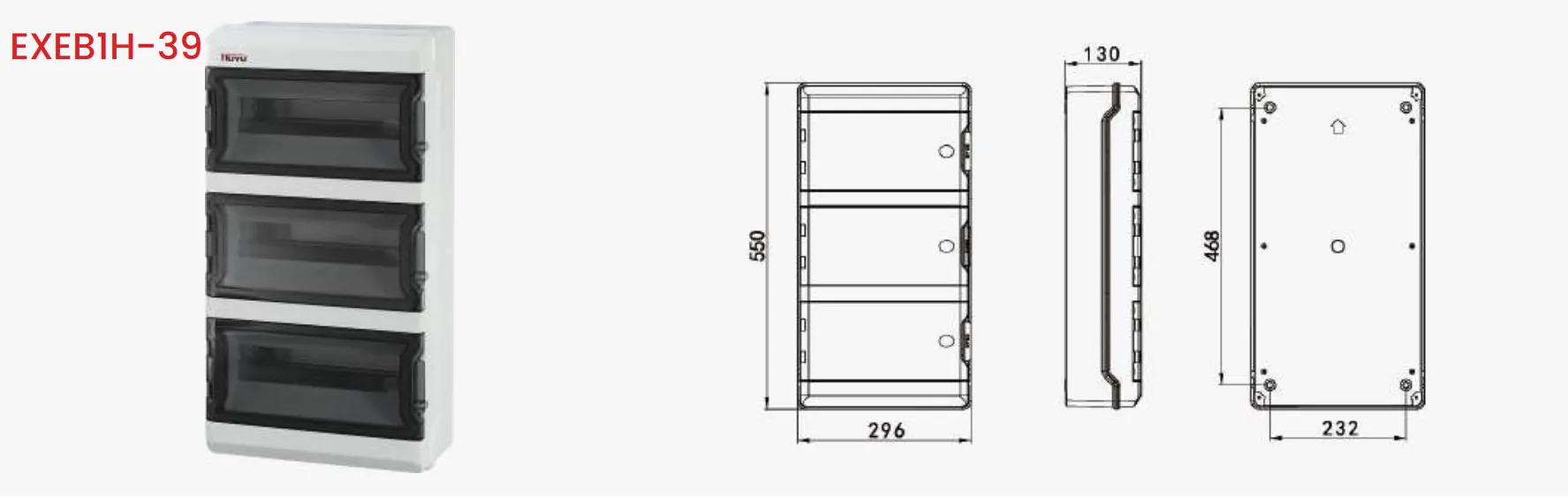

| EXEBIH-39 | 39 Circuits | 3 | 296*550*130 | Zero row:two 8 holes Ground row:two 8 holes |
Surface/Wall-mounted |
