HUW9NEGZ DC Disconnector

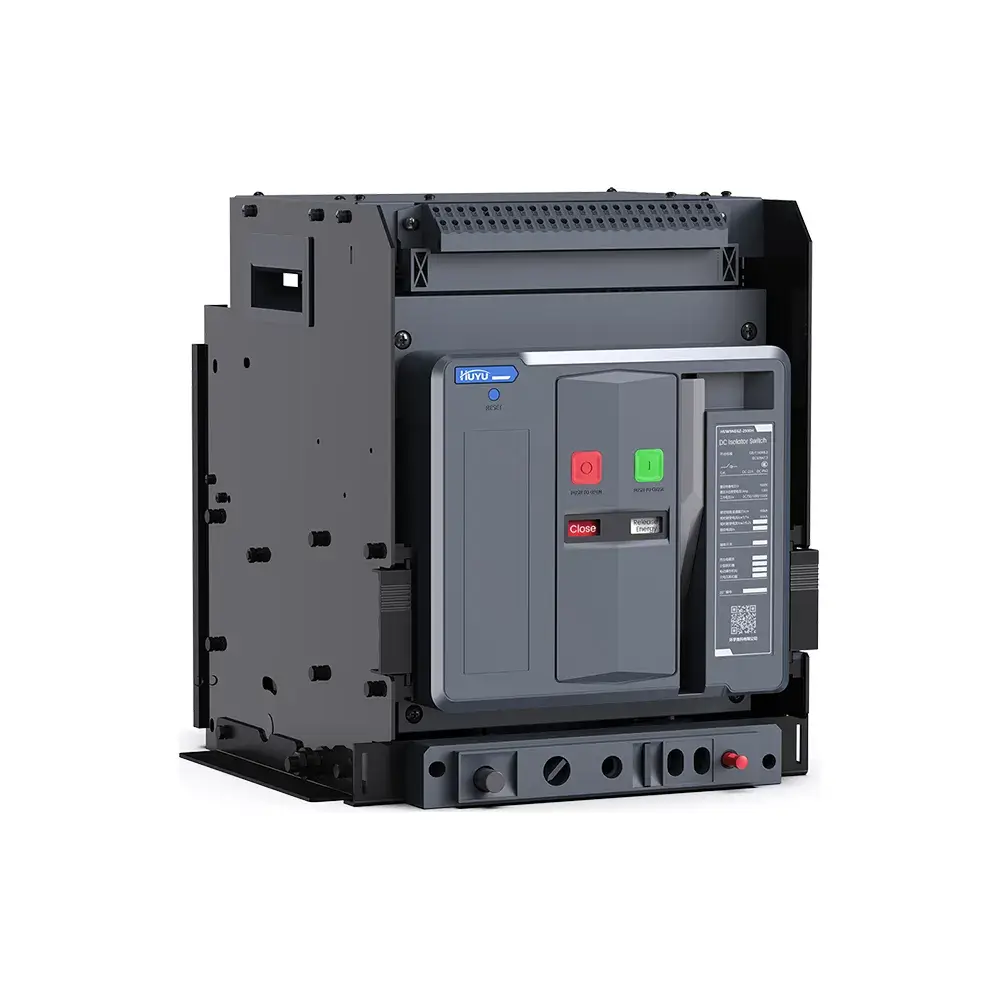

HUW9NEGZ DC Frame Switch Disconnector – Ensuring Safe Disconnection in Modern Energy Systems

The HUW9NEGZ series DC switch disconnector is specifically designed for central DC switching in large photovoltaic and battery storage systems. Available with frame sizes of 2500A and 4000A, it reliably isolates PV array combiner boxes, battery rack outputs, and DC distribution feeders. Compatible with systems rated for DC 750V, 1000V, and 1500V, the disconnector meets the requirements of utility-scale solar and storage projects with these voltage levels.

The 4000A frame’s 100kA Icw/1s and 100kA Icm ensure that the disconnector stays intact during downstream faults, enabling selective protection to mitigate such events. Provided in fixed or draw-out configurations, with optional 2P, 3P, or 4P setups, this DC frame switch caters to diverse system architectures. For panel builders and project purchasers seeking a reliable 1500V DC disconnect, HUYU Electric offers direct factory supply, along with OEM/ODM solutions supported by complete compliance documentation.

Frame Sizes & Performance Data – 2500A and 4000A

Flexible Pole Configurations & Installation

System designers can choose the appropriate pole configuration for their specific DC system needs. The 3P and 4P configurations serve applications requiring multiple poles for series-breaking or isolating positive and negative conductors in ungrounded arrays. Meanwhile, the 2P setup for the 4000A frame is ideal for large single-pole DC bus disconnection.

Fixed mounting fits standard installations, while the draw-out configuration on 2500A frames enables rapid replacement without de-bolting cables. This feature is especially advantageous for maintaining continuous operation in battery applications.

Technical Specifications

OEM/ODM Supply – DC Switch Disconnectors for the Next Generation of Energy

Buyer’s Guide

How to Select a DC Disconnect Switch for Utility-Scale Systems

Key criteria for specifying the HUW9NEGZ in large PV arrays and battery storage installations.

1. Voltage Selection: 1000V or 1500V?

Many existing PV plants operate at 1000V DC, but newer utility-scale projects are moving to 1500V to reduce cable losses. The HUW9NEGZ supports both, with the 2500A frames covering 750V–1500V and the 4000A frame dedicated to 1500V. Selecting a 1500V DC disconnect at the design stage future-proofs the installation for higher efficiencies.

2. Current Rating and Short-Time Withstand

Choose the frame size based on the maximum continuous DC current of the array or battery bank. The 2500A frame suits most PV combiners and mid-sized battery storage, while the 4000A frame addresses larger systems. For high fault current scenarios, the 100kA Icw provides reliable selective coordination with downstream fuses or breakers.

3. Pole Configuration

For ungrounded floating arrays, a 4-pole DC disconnector is essential to isolate all current-carrying conductors, ensuring compliance with NEC and IEC safety standards. The 2P option on the 4000A frame serves grounded systems effectively.

4. Fixed vs. Draw-out

Draw-out construction on 2500A models enables swift removal and replacement, making maintenance more efficient in high-demand installations. In simpler applications, fixed mounting provides long-term stability.

Frequently Asked Questions

What is the difference between AC and DC disconnects?

An AC disconnect opens an alternating current circuit and relies on the natural zero-crossing of the current to extinguish the arc. A DC disconnect switch must break a direct current with no zero-crossing, requiring special arc chambers, magnetic blowouts, or multi-pole series breaking to stretch and cool the arc until it extinguishes. The HUW9NEGZ DC switch disconnector is purpose-built for DC with DC-PV2 rating and high DC voltage withstand, ensuring safe isolation under load without the risk of sustained arcing that could occur if an AC-only device were used on DC.

What is the 120 rule for solar panels?

The “120% rule” is an NEC (National Electrical Code) requirement for backfed circuit breakers in load centers, limiting the sum of the main breaker and solar backfeed breaker to 120% of the busbar rating. While this rule applies to AC-side interconnection, on the DC side, a DC disconnect switch like the HUW9NEGZ serves a different purpose: it provides a manually operated isolation point required by IEC and NEC for safe maintenance and emergency shutdown of the PV array. The DC disconnector must be sized for the array’s maximum continuous current and voltage, not a percentage of busbar rating.

What are the rules for electrical disconnects?

Electrical codes require that disconnecting means be provided to isolate equipment from all ungrounded conductors of the supply source. For PV systems, a DC disconnect must be accessible, clearly marked, and capable of breaking the full load current at the system’s maximum voltage. The HUW9NEGZ as a DC frame switch meets these requirements with DC-PV2 rating, confirming it can switch DC under load, and its draw-out option provides visible isolation. It must be installed in compliance with local codes, which may specify location (e.g., near the inverter, at point of entry) and labeling.

What is a DC switch in an inverter?

Many string inverters include an integrated DC switch — often a rotary disconnect — that allows the DC input from the PV array to be isolated directly at the inverter for maintenance or emergency shutdown. This switch must be DC-rated and capable of breaking the array’s full voltage and current. The HUW9NEGZ serves a similar role but on a much larger scale: as an external DC switch disconnector rated up to 4000A and 1500V, it isolates the DC side of central inverters or connects battery racks to the DC bus, providing a dedicated, high-performance isolation point beyond the inverter’s internal switch.
