HUX-50 Series Distribution Box
HUX-50 series distribution box is made of metal materials, and the panel is made of flame retardant material ABS.
Standard: IEC 61439
Ways: 6, 8, 10, 12, 15, 18, 20, 24, 30, 36
Protection Degree: IP30
Withstand Voltage: 2000V (1min)
Insulation Resistance: ≥5MΩ
Ground Resistance: ≤0.05Ω
Mounting: Wall-mounted (flush or surface)
Applications: Residential distribution, commercial power supply, lighting control
Product Information

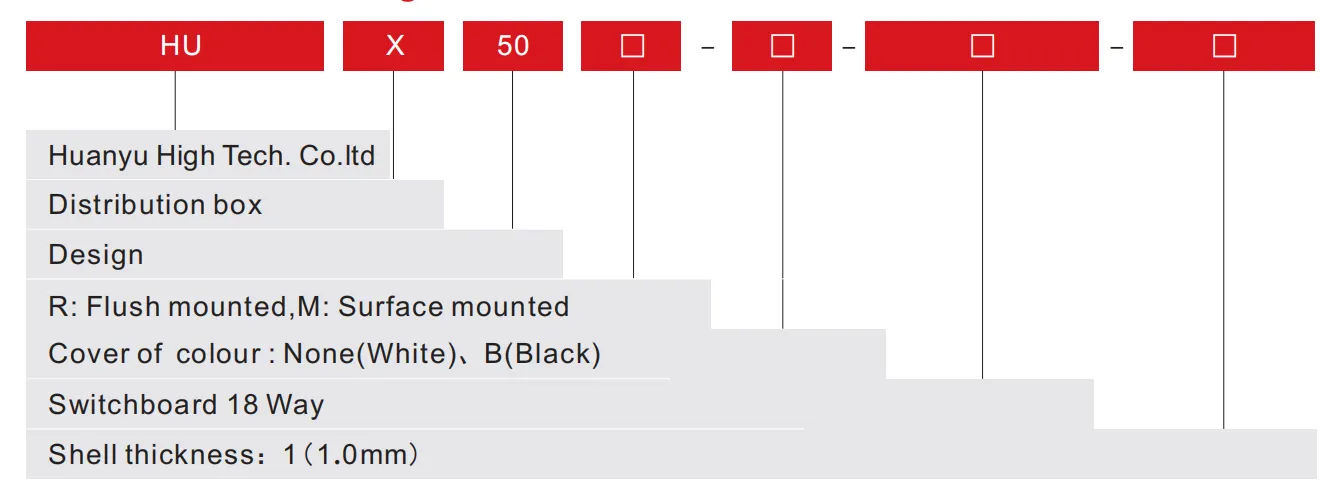

Model and Meaning
Normal working condition and installation condition
- Altitude: ≤2,000m for mounting site
- Ambient temperature:Limited temperature -25℃ – +40℃
- Installation method: Flush mounted on hollow wall, Surface mounted.
- on non-combustible wall,should be installed vertically.
- The highest temperature during the building process:+60℃.
- Installation method: Open the small door, unscrew the left and right screws on the door frame,remove the panel, and then install the electrical components and complete sets of wiring. After installing the wiring, cover the panel and tighten the screws on the door frame.
- Safety protection: When electrical components are installed in the cabinet, it is necessary to ensure that the cabinet is reliably grounded.
Technical data
| Withstand voltage | Ground DC resistance | Insulation DC resistance | Protection degree |
| 2000V 1min | ≤0.05Ω | ≥5Ω | IP30 |
Overall and mounting dimensions
| Model specifications | Overall dimensions | Installation dimensions | ||||
| W(mm) | H(mm) | D(mm) | W(mm) | H(mm) | Aperture(mm) | |
| A | B | F | C | D | ||
| HUX50M-6 | 171 | 220 | 105 | 100 | 149 | Ø7X11 |
| HUX50M-8 | 208 | 222 | 105 | 137 | 149 | Ø7X11 |
| HUX50M-10 | 244 | 222 | 105 | 174 | 149 | Ø7X11 |
| HUX50M-12 | 297 | 222 | 105 | 228 | 149 | Ø7X11 |
| HUX50M-15 | 353 | 222 | 105 | 283 | 149 | Ø7X11 |
| HUX50M-18 | 400 | 250 | 105 | 330 | 179 | 7X11 |
| HUX50M-20 | 445 | 250 | 105 | 375 | 179 | Ø7X11 |
| HUX50M-24 | 516 | 281 | 105 | 446 | 210 | Ø7X11 |
| Note:The dimensional tolerance is±3mm. | ||||||
| Model specifications | Overall dimensions | Installation dimensions | ||||
| W(mm) | H(mm) | D(mm) | W(mm) | H(mm) | Aperture(mm) | |
| A | B | F | C | D | ||
| HUX50M-24 | 298 | 346 | 105 | 228 | 275 | Ø7X11 |
| HUX50M-30 | 353 | 349 | 105 | 286 | 280 | Ø7X11 |
| HUX50M-36 | 406 | 370 | 105 | 336 | 300 | 7X11 |
| Note:The dimensional tolerance is±3mm. | ||||||
FAQ
What is a distribution box?
A distribution box is an enclosure that houses circuit breakers and protection devices, receiving main power and distributing it to multiple branch circuits.
Is a septic distribution box necessary?
A septic distribution box distributes wastewater to drain fields. Our distribution boxes are electrical — not septic. Electrical distribution boxes are essential for safe power distribution.
What is another name for a distribution box?
Also called distribution board, consumer unit, breaker panel, fuse box, electrical panel, or DB box.
Can I replace a distribution box myself?
No — it must be replaced by a qualified electrician due to electrical hazards and legal compliance requirements.
