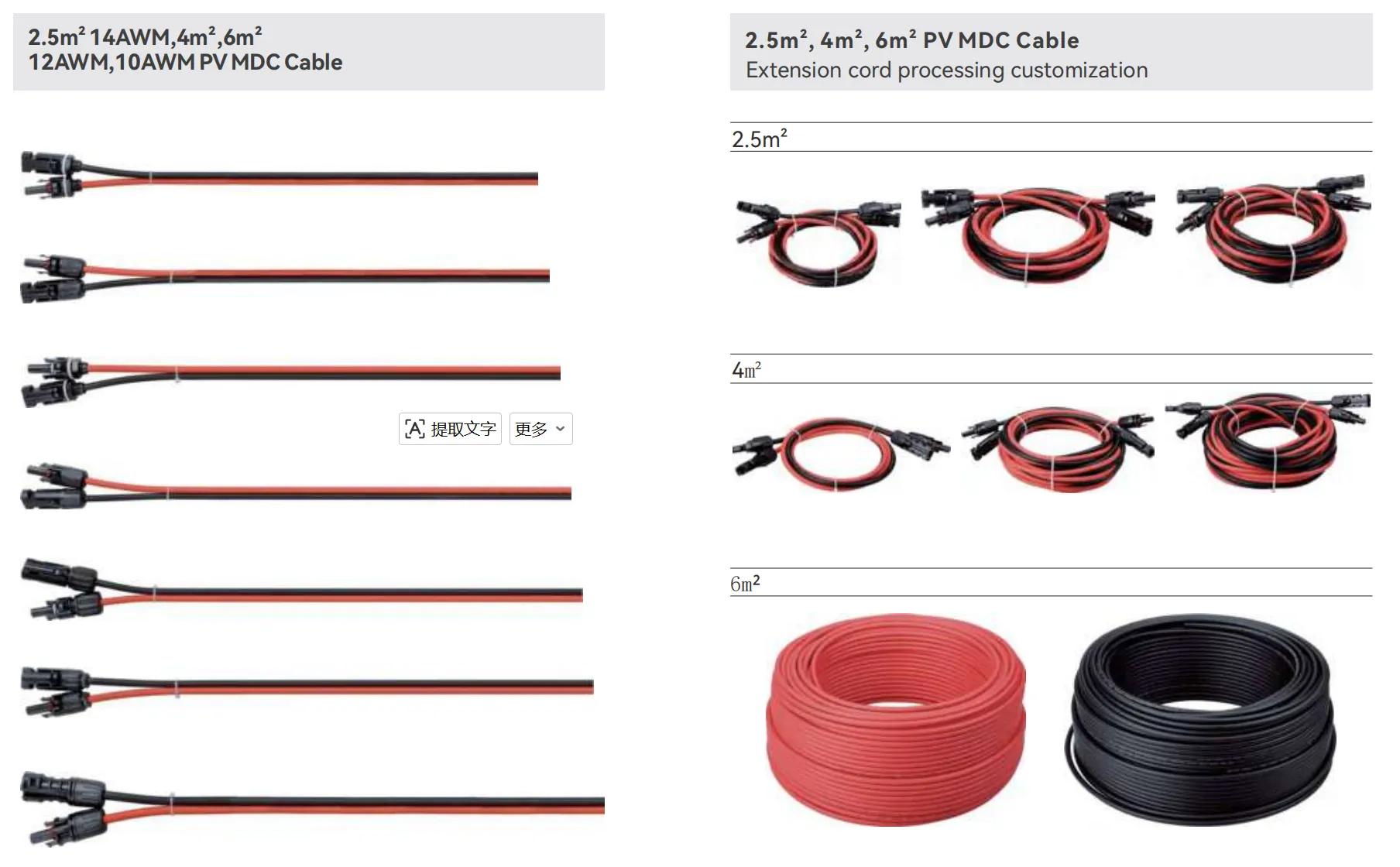

PV DC Cable for Solar Energy Systems
A high-performance connection solution designed specifically for photovoltaic equipment (such as combiner boxes and inverters). It features dual-layer shock-hazard protection for under-load mating and unmating, supports rapid assembly, and offers excellent vibration resistance.
Built for rugged durability, it features an IP67-rated design that is resistant to rain, moisture, and dust.
Constructed from high-quality materials resistant to heat, wear, and corrosion, and utilizing thickened copper cores, it ensures efficient conductivity and exceptional durability.
Product Information
Technical Parameters
| Connector system | φ4mm |
| Rated voltage | 1000V DC |
| Rated current | 30A |
| Test voltage | 6kV(50Hz,1min.) |
| Temperature Range | -40℃~+90℃(IEC)-40℃~+75℃(UL) |
| Upper Temperature Limit | +105℃(IEC) |
| Degree of protection,mated | IP67 |
| unmated | IP2X |
| Comtact rcsistanccof plug connectors | 0.5mQ |
| Safety class | Il |
| Contact material | Messing,verzinnt Copper Alloy,tin plated |
| Insulation material | PC/PA |
| Locking system | Snap-in |
| Flams class | UL-94-V0 |
| Salt mist spray test,degree of severity 5 | IEC60068-2-52 |
Request a Quotation for PV DC Connectors – 1000V Series
30A rated current, φ4mm connector system, IP67 protection, 0.5mΩ contact resistance, UL94-V0 flame-rated housing. Compatible with 2.5mm², 4mm², and 6mm² solar cables. Suitable for combiner boxes and inverter connections. OEM/ODM options available with complete documentation. Contact us for personalized pricing and lead times.
Project-Based Quotation • IEC/UL Certified • Worldwide Shipping
OEM/ODM Supply – Custom-Built PV Connection Solutions
PV DC Connector – Reliable Solar Connection
This PV DC connector series is specifically engineered for photovoltaic systems, delivering true DC-rated performance with ≤0.5mΩ contact resistance, IP67 protection, and UL94-V0 flame-rated housing. The dual-layer shock-hazard protection ensures safe mating and unmating under load, while the thickened copper core design guarantees efficient conductivity and exceptional durability. With its snap-in locking system and vibration-resistant construction, this connector is ideal for solar combiner boxes, inverter DC inputs, and battery storage connections. Switching from competing brands is seamless, with HUYU Electric offering certified safety, custom labeling, and competitive pricing directly from the manufacturer.
Frequently Asked Questions
What is a PV DC cable?
A PV DC cable is especially designed for use in sending direct current signals in solar systems. This cable is utilized to connect solar panels with combiner boxes, inverters as well as battery storage systems. Our PV DC connector has been developed to make ends of these cables ensuring secure low-resistance joints with protection rated IP67.
What is DC PV?
DC PV indicates the DC part of a solar system and the energy coming from the solar panels before the inverter converts it into AC. The DC section of solar systems can work with voltages of 1000V or even 1500V DC. Our PV DC Connector works at 1000V DC and has been tested at 6kV.
What is the difference between PV cable and normal cable?
PV cables Solar cables are made for use in solar installations, boasting both UV resistance, weatherproof insulation, and high temperatures (-40℃ to 90℃). To avoid corrosion, they use tinned copper conductors and are wrapped with thicker insulation to withstand rough weather. Ordinary cables (like any other standard PVC insulated cables) do not have this feature and get quickly damaged by exposure to UV rays, moisture, high or low temperatures. Our PV DC connectors are produced for connection with PV cables only.
What is a PV cable?
A photovoltaic cable is characterized as a single core cable utilized for joining solar panels and other units of a photovoltaic system. This type of cable contains UV resistant, weatherproof insulating materials and is capable of enduring high temperature conditions, moisture and mechanical stresses. The rating of photovoltaic cables lies in the range of 1000V-1500V DC and their cross-sections are 2.5mm², 4mm² and 6mm². Our connector is compatible with PV cables and provides a secure termination.
