When a homeowner in Chicago asked for a new circuit to be installed for his office, the electrician opened the fuse box only to discover that all slots were occupied. The old approach for dealing with such a situation included installing a subpanel, or upgrading the electrical supply. Instead of employing the traditional methods in this case, however, the electrician used an Eaton BD1520 breaker. The BD1520 duplex circuit breaker makes it possible to install 2 independent 15 and 20 amp circuits in one-inch fuse box slot, thus offering a new solution to a problem of space. The homeowner was able to get the required result, and the project was completed more cheaply than the ordinary panel installations. Many electricians know the DB1502 circuit breaker. Complete knowledge of this device, its advantages and restrictions, as well as its cost and a possibility of use instead of other devices will enable a person deciding to install a new circuit to save a significant sum of money.
Summary: The Eaton BD1520 is a duplex-configuration (tandem circuit breaker) that measures 1 inch in size. Its use is advisable for Eaton BR-series load centers. The BD1520 breakers are made to have a separate single-pole 15-amp breaker and a single-pole 20-amp breaker all encased in one unit that uses one space in the panel. The BD1520 breaker is categorized as a non-CTL (meaning it does not possess the rejection feature of preventing use in non-tandem-compatible panels) breaker. Therefore it is capable of being used in any panel slot regardless of being designated for tandem breakers or not, provided that the rating of the panel and bus bar is properly met.
What the Eaton BD1520 Actually Is: The Specifications That Define It

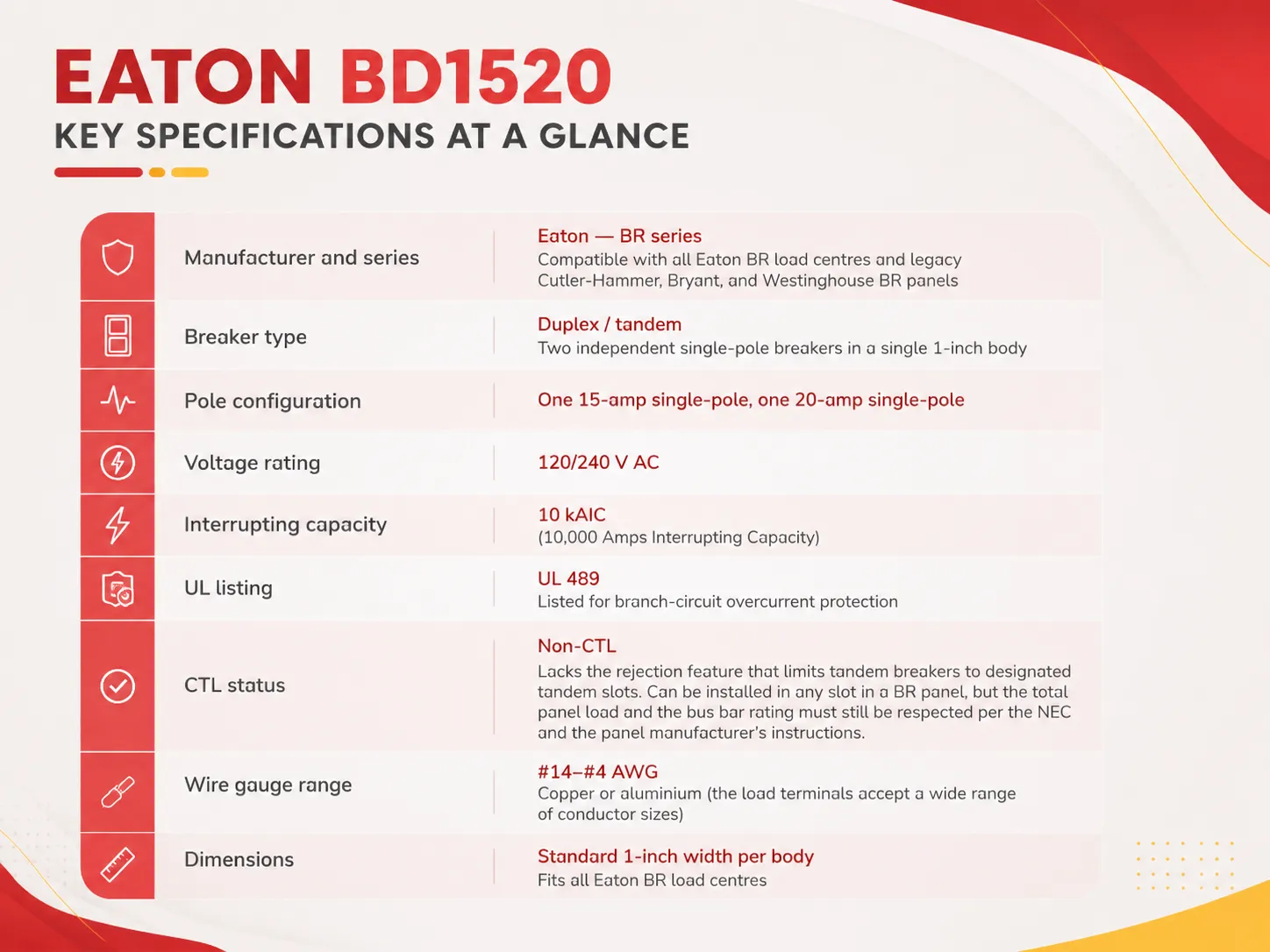

The Eaton BD1520 is not just a 15 AMP breaker and a 20 AMP breaker glued together. It is an engineered device which is also UL listed with specific electrical and mechanical features. Some of these features affect where it can be used and what it can protect. The specifications given in the table below need to be checked by an electrician, contractor or knowledgeable homeowner before buying or using the device.
| Specification | Eaton BD1520 Value |
|---|---|
| Manufacturer and series | Eaton — BR series (compatible with all Eaton BR load centres and legacy Cutler‑Hammer, Bryant, and Westinghouse BR panels) |
| Breaker type | Duplex / tandem — two independent single‑pole breakers in a single 1‑inch body |
| Pole configuration | One 15‑amp single‑pole, one 20‑amp single‑pole |
| Voltage rating | 120/240 V AC |
| Interrupting capacity | 10 kAIC (10,000 Amps Interrupting Capacity) |
| UL listing | UL 489 — listed for branch‑circuit overcurrent protection |
| CTL status | Non‑CTL — lacks the rejection feature that limits tandem breakers to designated tandem slots. Can be installed in any slot in a BR panel, but the total panel load and the bus bar rating must still be respected per the NEC and the panel manufacturer’s instructions. |
| Wire gauge range | #14–#4 AWG copper or aluminium (the load terminals accept a wide range of conductor sizes) |
| Dimensions | Standard 1‑inch width per body; fits all Eaton BR load centres |
Where the BD1520 Belongs—and Where It Does Not
The Eaton BD1520 is specifically designed for a certain issue: a BR series panel that is full yet still has spare power to accommodate more 120-volt circuits. The vintage setting is an older house with a 100-amp or 150-amp BR panel that needs to be fitted for a new circuit serving a home office, garage workshop, several kitchen outlets, or even a bathroom modernization—all while the amperage calculations show that this additional load will be well within the allowable limits of this panel. Selling the BD1520 would provide two new circuits—15-amp and 20-amp—that do not need a single free slot within the panel. In situations when a customer only needs to install one or two circuits the BD1520 is the most cost-effective choice as a unit costs $25-50 and the installation is simple enough for a competent electrician to complete it in reasonable time.
The BD1520 has some limitations that all installers must be aware of. First of all, it does not have the ability to deliver a voltage of 240 volts. The breaker is designed with the two poles of the breaker connected to the same bus bar phase, meaning that the voltage generated is equal to 0 volts. Any 240-volt appliance such as a dryer, water heater, EV charger, or a baseboard heater requires a double-pole breaker that connects to two bus bars in adjacent slots. The BD1520 is only able to operate at the 120-volt level. Moreover, this device does not increase the total carrying capacity of the panel. If new circuits are added to an existing panel that reaches maximum capacity, the main circuit breaker will trip or the bus bar may overload and lead to a fire hazard. Therefore, it is essential to conduct calculations in compliance with NEC Article 220 before any new circuit is added even when tandem breakers are used. Additionally, the BD1520 is not compatible with Eaton CH-series panels as it only fits BR series panel boards. The label on the panel is the final authority, and if the breaker model is not listed for the panel, it must not be installed. For help with the load calculation that determines whether a panel can accept additional circuits, our guide on what size circuit breaker you need walks through the NEC‑based process.
How the BD1520 Compares with the Alternatives

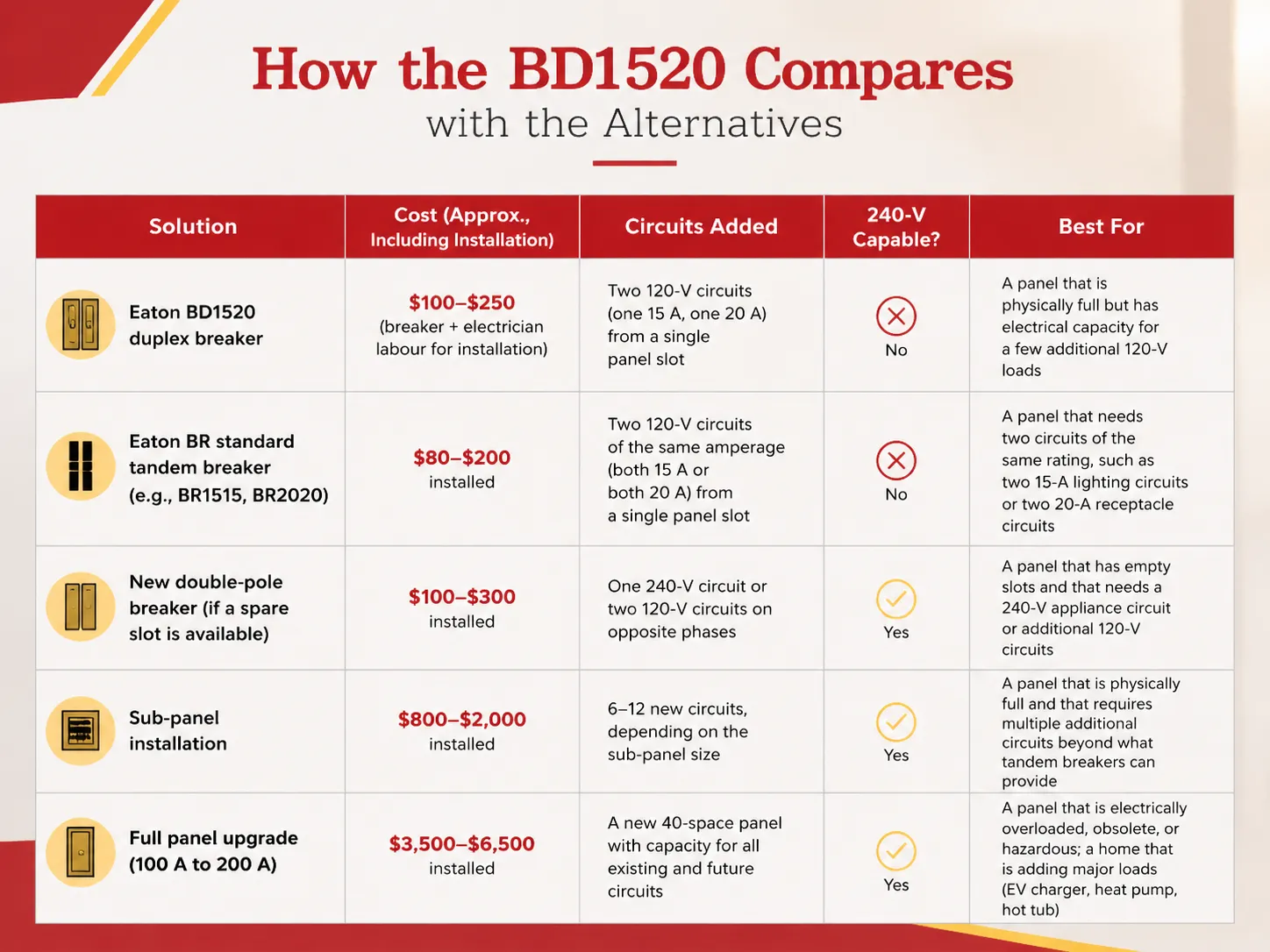

The Eaton BD1520 is one of several solutions for adding circuits to a full panel, and the table below compares it with the most common alternatives across the criteria that matter in a real‑world residential installation.
| Solution | Cost (Approx., Including Installation) | Circuits Added | 240‑V Capable? | Best For |
|---|---|---|---|---|
| Eaton BD1520 duplex breaker | $100–$250 (breaker + electrician labour for installation) | Two 120‑V circuits (one 15 A, one 20 A) from a single panel slot | No | A panel that is physically full but has electrical capacity for a few additional 120‑V loads |
| Eaton BR standard tandem breaker (e.g., BR1515, BR2020) | $80–$200 installed | Two 120‑V circuits of the same amperage (both 15 A or both 20 A) from a single panel slot | No | A panel that needs two circuits of the same rating, such as two 15‑A lighting circuits or two 20‑A receptacle circuits |
| New double‑pole breaker (if a spare slot is available) | $100–$300 installed | One 240‑V circuit or two 120‑V circuits on opposite phases | Yes | A panel that has empty slots and that needs a 240‑V appliance circuit or additional 120‑V circuits |
| Sub‑panel installation | $800–$2,000 installed | 6–12 new circuits, depending on the sub‑panel size | Yes (if a double‑pole feeder breaker is used) | A panel that is physically full and that requires multiple additional circuits beyond what tandem breakers can provide |
| Full panel upgrade (100 A to 200 A) | $3,500–$6,500 installed | A new 40‑space panel with capacity for all existing and future circuits | Yes | A panel that is electrically overloaded, obsolete, or hazardous; a home that is adding major loads (EV charger, heat pump, hot tub) |
Installation and Code Compliance: What the Electrician Must Verify
Installing the Eaton BD1520 is a straightforward job for a licensed electrician, but it requires the same safety procedures and the same code compliance as any other breaker installation. The electrician must verify that the panel is an Eaton BR‑series load centre (or a compatible legacy brand), that the panel’s load calculation confirms that the additional circuits will not exceed the panel’s or the bus bar’s rating, that the breaker is seated correctly on the bus bar—the BD1520 clips onto the BR bus bar like any standard BR breaker—and that the load wires are correctly sized for the circuit’s amperage (14 AWG copper for the 15‑A circuit, 12 AWG copper for the 20‑A circuit) and are torqued to the specification printed on the breaker body. The electrician must also ensure that the circuits are correctly labelled on the panel directory, and that the installation is permitted and inspected per the local code requirements. A BD1520 that is installed in a panel that is not listed for it, or that is installed without a load calculation that confirms the panel’s capacity, is a code violation and a fire risk—and the breaker itself is not the hazard. The hazard is the installation that exceeds the panel’s design limits. For a deeper understanding of the certification that every breaker in a residential panel must carry, our article on what UL 489 breakers are explains the testing and listing requirements that the BD1520, and every other breaker in the panel, must meet.
What the BD1520 Costs and Where to Buy It
The Eaton BD1520 is a product that one can get easily from various sources such as electrical supply houses, Home Depot and Lowe’s, and online electrical distributors. The price of the breaker by itself is between $25 and $50, depending on the store or the amount purchased. The cost of installation, along with the labor costs to install it, can bring the total cost from $100 to $250. The price of BD1520 is comparable with other tandem and duplex breakers of the same rating. If a homeowner wants to add two circuits to the full panel, the cost of installation of BD1520 would be around 5% – 15% of the complete cost of full panel replacement. Thus, it would be very attractive economically for those homeowners who have their old panels still in good condition and quite capable of taking new loads. As for the electrical contracting community and those who are engaged in panel-making, HUYU offers all types of circuit breakers – MCBs, RCBOs, and DC Breakers – that comply with international standards (IEC, UL, TUV, CE).For help selecting the correct breaker for any circuit, our guide on what size circuit breaker you need walks through the NEC‑based sizing process.
Frequently Asked Questions
Can you replace a 15 amp breaker with a 20amp?
No, you should always check that the circuit wiring is rated for 20 amps. The installation of a 15-amp circuit breaker is usually done using the 14 AWG copper wire rated to carry that much load. The application of a 20 amp circuit breaker utilizing the 14-gauge is breaking the code as well as posing a danger of fire due to overheating of the wire not in time for the circuit breaker to work. A 20-amp breaker can work only when installed with 12 AWG or even thicker wire.
Which breakers are interchangeable with Eaton?
The BR-Series breakers by Eaton are applicable with their BR load centers and the past models of Cutler Hammer, Bryant, and Westinghouse BR-series panels. The CH-series breakers can work with Eaton’s CH load centers along with older models of Cutler Hammer CH-series panel boards. The BR breakers and CH breakers are not interchangeable with the other types, nor are Eaton breakers certified for use in GE, Siemens, or Square D panel boards if they aren’t classified as such under UL. The panel label indicates which breakers to utilize.
What is a BD circuit breaker?
The BD circuit breaker which is produced by Eaton BR series is basically made up of two separate single pole breakers of different amperage but brought together inside a single inch-sized frame. The designation BD is indicative of a non CTL tandem breaker which is compatible with any slot in a compatible BR panel. The BD 1520 model is one example of this device and has a pole rated 15 amperes and another rated 20 amperes.
What is the lawsuit about Eaton arc fault breakers?
A class‑action lawsuit filed against Eaton in 2019 alleged that certain Eaton AFCI (Arc Fault Circuit Interrupter) breakers were defective, causing nuisance tripping and failing to detect actual arc faults. Eaton denied the allegations but agreed to a settlement in 2022 that provided compensation to affected consumers. The lawsuit involved specific AFCI breaker models and does not affect the standard thermal‑magnetic breakers such as the BD1520. A homeowner who is purchasing an Eaton AFCI breaker should verify the model number and the current product listing on the Eaton website to ensure that the product is the latest design and is covered by the manufacturer’s current warranty.
References
- Eaton — BR Series Duplex/Tandem Circuit Breakers, including BD1520. Manufacturer’s official product page with specifications, compatibility charts, and installation guidance.
- Home Depot — Eaton BD1520 Duplex Circuit Breaker. Retailer product listing with price, customer reviews, and compatibility information.
- UL 489 — Standard for Molded‑Case Circuit Breakers. The safety standard to which the BD1520 is listed, governing its overcurrent protection, interrupting capacity, and mechanical endurance.
- NFPA 70 — National Electrical Code (NEC). The electrical installation code that governs the use of tandem breakers, the load calculation that must precede their installation, and the panel‑listing requirements that ensure a safe installation.
The Eaton BD1520 duplex circuit breaker is a targeted, practical, and cost‑effective solution for the homeowner who needs to add one or two 120‑volt circuits to a BR‑series panel that is physically full but electrically capable. It’s not a one-for-all solution. It doesn’t deliver 240 volts. It doesn’t add to the total ampacity of the panel. It doesn’t substitute a panel in bad shape or outdated. Yet where the BD1520 shines is when we talk about its specific use—aimed at modern BR panels with some additional 120-volt loads, and the budget not sophisticated enough for a complete service upgrade. For a savvy homeowner willing to get the installation done by a qualified electrician, this is the right and the safe way to get what he needs at the fraction of the cost. HUYU can produce any circuit breakers and other protecting devices such as MCBs, RCBOs, and DC-rated breakers all over the world as long as the right circuit breaker is obtained for the right panel secured in accordance with corresponding regulations.
